Pixell worlds largest Datapath distributor. Pixell sells to dealers, resellers, system integrators and end users. Pixell rents x4 units. Buy it now here. Capture Cards, Frame Grabber, Video Processors rental dealer purchase overnight
USD $2219.00 In-Stock
VisionSC-HD4+ Professional Audio and Video Capture Card Advanced Graphics Display Technology

VisionSC-HD4+/H
Capture card with 2 X HDMI splitter cables
VisionSC-HD4+/D
Capture card with 2 x DVI splitter cables
USD $2219.00   In-Stock

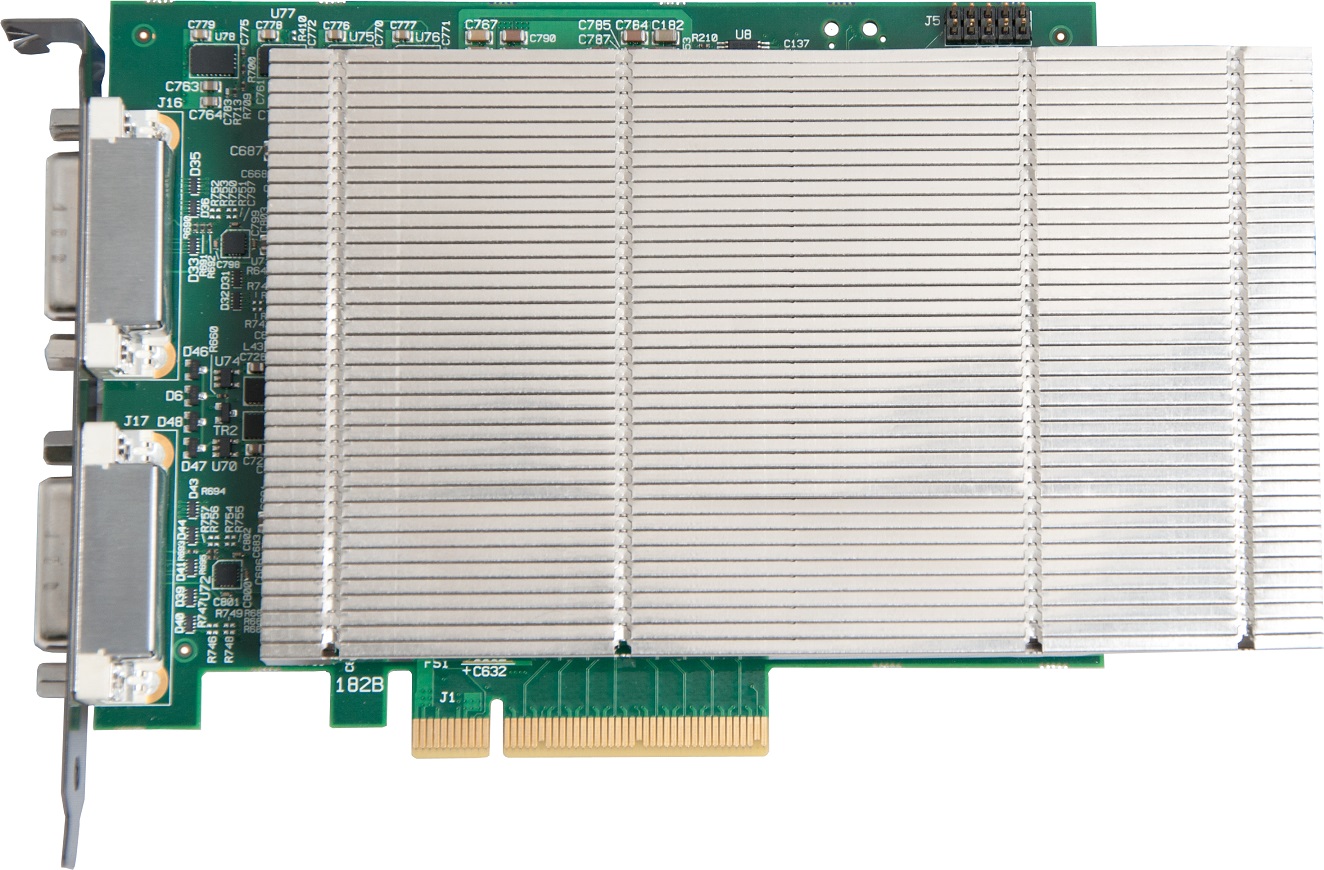

Datapath VisionSC-HD4+
NOW SHIPPING!
The VisionSC-HD4+ has four channels of HDMI 1.4, two supporting 297MHz (3840x2160 at 30 fps) and two supporting 165 MHz (1920x1080 at 60 fps), all operating independently of each other. This enables four separate four video sources to be captured and controlled simultaneously. The card also has embedded audio support across all four channels. The VisionSC-HD4+ is shipped with adapter cables for either HDMI or DVI.
Key Qualities of the VisionSC-HD4+ Capture Card

Quad HDMI Video capture:

    Four independent HDMI 1.4 capture channels
    2x297 Mhz channels offering 3840x2160p at 30 fps
    2x165 Mhz channels offering 1920x1080p at 60 fps
    Support for HDCP

General Hardware Features

    Large 6.4GB/s capture bandwidth for more pixels
    Highly flexible, multiple cards can be used in a single system
    Embedded audio capture

General Software Features

    All standard Vision capture card features
    Datapath unified Windows and Linux driver support
Specification of the VisionSC-HD4+ Capture Card:

Board Format PCIe x8 plug-in card
Connectors
2 x DSM59 connectors plus adapters
Maximum capture resolution
Channels 1 & 3: 2x3840x2160p @30 Hz
Channels 2 & 4: 2x1920x1080p @60 fps
Dimensions 110mm a 177mm (incl heat sink)
Frame buffer memory
768 MB
Pixel transfer formats
RGB: 5-5-5, 5-6-5 or 8-8-8 (24 bit/32 bit)
YUV: 4:2:2
MONO: 8 bit
Update rate Channels 1 & 3 - 297 M / pixels per second
Channels 2 & 4 - 165 M / pixels per second
Video Modes HDMI 1.4, HDMI 1.3, DVI
Operating system support Windows ® XP, Windows Vista, Windows Server 2003/ 2008, Windows 7, Windows8/8.1 and Linux
Power Requirements Max current at +3.3 - 0.45A.
Max current at +12V - 0.85A
Max power ≈ 18W
Operating Temperature 0 to 35 °C/ 32 to 96 °F
Storage Temperature -20 to 70 °C/ -4 to 158 °F
Relative Humidity 5% to 90% non-condensing
Warranty 3 years

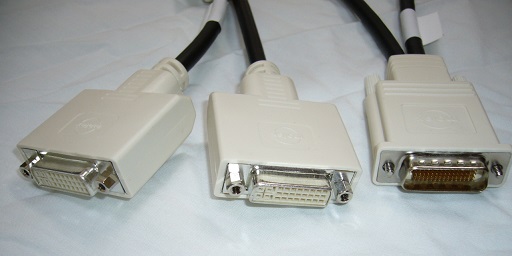

DVI Y cable Connectors

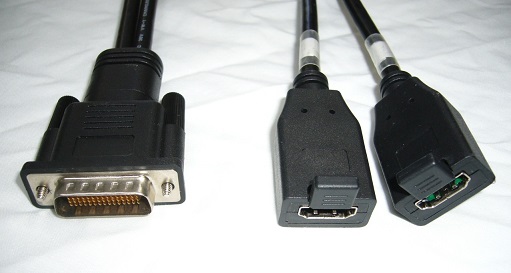

HDMI Y cable Connectors

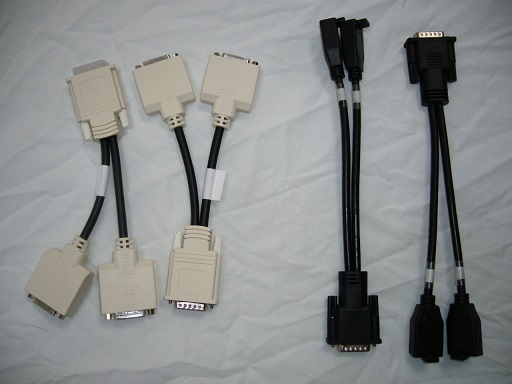

DVI  & HDMI Y cables
