USD $1963.00 in-Stock

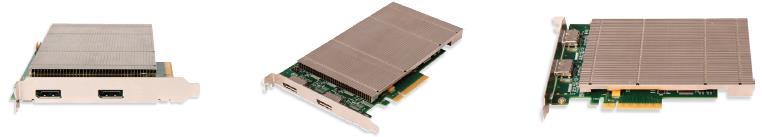

VisionSC-DP2 Professional  Video Capture Card Advanced Graphics Display Technology
VisionSC-DP2
Dual Port 1.2 DisplayPort
DESCRIPTION

The professional AV market has begun to adopt 4K UHD technologies, with integrators and system builders demanding higher performance and  reater resolutions in the video that they are working with. The Datapath VisionSC-DP2 offers video professionals the ability to simultaneously capture multiple 4K, Ultra High Definition, video feeds each at 60 frames per second. Developed as part of the VisionSC family of capture cards, the Vision-
SC-DP2 offers unmatched capture performance and reliability.
FEATURES
• Two independant DisplayPort 1.2 capture channels
• Eight lane PCIe Gen.3 interface, Net 6.4 GB/s total capture bandwidth
• Frame buffer memory - 768 MB
• Up to 8k x 8k capture resolution (8k resolutions are available at lower frame rates)
• Single PCIe endpoint, allowing for more cards & captures to be placed within a single system.
• Full support of the Vision Feature set
• Datapath unified Windows® and Linux® driver support VisionSC-DP2
VISION PERFORMANCE FEATURES
The VisionSC-DP2 is supported by the Datapath Vision Performance Driver. Combining both Hardware and Software enhancements the Vision Performance Driver provides users with a variety of features to help them acheive their goals. Features include LiveStream a low latency capture solution, MultiStream allowing for the independent control of multiple instances of a single capture. A hardware based timestamping facility, automatic signal detection and more...
VIDEO STREAMING
DirectShow drivers for WDM Streaming supports the following applications, to encode, record and stream video over networks or the Internet:

• Microsoft Media Encoder®
• VLC
• VirtualDub
• Any other DirectShow encoding software

For streaming applications, the VisionSC-DP2 can be used with Windows Media Encoder to compress and stream captured video. To replay the video, use Windows® Media Player. Any application compatible with Windows® DirectShow technology can use the VisionSC-DP2 due to it built-in WDM
support.
SPECIFICATIONS
Board Format PCIe x8 plug-in card
Dimensions 110mm x 177mm (incl heat sync)
Connectors Locking Dual DisplayPort 1.2
Max Capture Resolution 616MPixel/second capture bandwidth per channel.
Provides => 2 * 3840 x 2160p @ 60Hz. Max
capture surface of 8k x 8k @ lower frame rates
Frame Buffer 768MB
Input Mode Detection Supports SMPTE - 352 Payload
Identifiers
Pixel Transfer Formats RGB: 5-5-5, 5-6-5 or 8-8-8 (24bit/32bit)
YUV: 4:2:2
MONO: 8bit
Update Rate User defined. Captured frame rate
will match the source providing max
data rate (6.4GB/s) is not exceeded.
Multi-buffered to eliminate tearing
artifacts.
Video Modes
Operating System Support Windows ® XP, Windows Vista,
Windows Server 2003, Windows
Server 2008, Windows 7 and
Windows 8/8.1
Power requirements Max current at +3.3 - 0.45A. (TBC)
Max current at +12V - 0.85A (TBC)
Max power ≈ 18W (TBC)
Operating Temperature 0 to 35 deg C/ 32 to 96 deg F
Storage Temperature -20 to 70 DegC (-4 to 158 DegF)
Relative Humidity 5% to 90% non-condensing
Warrant 3 years
Specifications are subject to change
Datapath VisionSC-DP2
