Pixell worlds largest Datapath distributor. Pixell sells to dealers, resellers, system integrators and end users. Pixell rents x4 units. Buy it now here. Capture Cards, Frame Grabber, Video Processors rental dealer purchase overnight
USD $1449.00 Status: In-Stock
ImageDP4
DVI Adaptor for mageDP4
Up to 1920x1200 (buy 4)
USD $35.00 Status: In-Stock
DVI Adaptor for mageDP4
Up to 3840x2160 (buy 4)

USD $195.00 Status: In-Stock
PRODUCT OVERVIEW

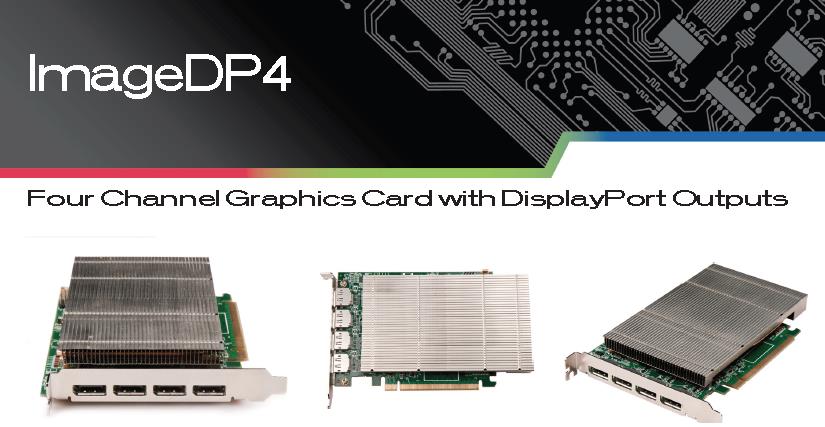

The ImageDP4 combines a single, powerful graphics processor with improved memory and PCI Express bandwidths to provide responsive performance at up to double the resolution of previous Datapath graphics cards.

Advanced display technology allows up to 16 ImageDP4 graphics cards to be supported by the Datapath display driver, providing a high resolution Windows® desktop comprising up to 64 screens. This ability to present standard Windows® applications alongside full frame-rate video on a single high resolution desktop allows the visualisation of large amounts of data at once to aid effective decision making. To complete the integration into a single desktop, all the outputs of the ImageDP4 graphics card are automatically frame-locked across all cards within a system.

This four channel DisplayPort graphics card is optimised for use with the Datapath Vision range of capture cards for systems requiring video overlays from a wide range of sources and resolutions. Video windows can be positioned and sized anywhere on the multi-screen desktop, while maintaining full frame rate, true colour rendering throughout.

Combining the Vision video capture cards with an ImageDP4 graphics display allows the construction of high-end display wall systems.

The ImageDP4 card natively supports four full-sized DisplayPort outputs for the convenience of high resolution, locking cable connectors and significantly longer cable lengths. Air flow management is optimised through the use of passive cooling, providing high reliability for any multi screen solution.
KEY QUALITIES OF THE ImageDP4 GRAPHICS CARD:

    Leading edge 600MHz graphics processor with 512MB GDDR5 at 800MHz
    PCI express 2.1 bus interface electronically supporting x4, x8 and x16 lane widths
    4 x DisplayPort 1.1a video ports providing up to 359 pixels/s at 24bit (eg 2560 x 1600 @60Hz)
    Up to 16 cards per system for a maximum of 64 display channels
    DisplayPort connectors allow full-size, locking cables capable of driving next generation displays
    DVI support using a catalogue of DisplayPort cables and adapters
    Up to 40m cable support using Datapath DPextend modules (powered via the graphics card)
    Passive cooling for high reliability
    Projector overlapping supported
    Supports Multi-Resolution, different resolutions on each output
    Monitor rotation support for landscape and portrait orientation
    Supports HDCP on all outputs
    Compatible with Datapath Wall Control software
    SDK available for OEM customers
SPECIFICATION OF THE ImageDP4 GRAPHICS CARD:

Card format 16 lane PCI Express
Card size 100mm x 177mm, including the heat sync
Maximum output resolution 4 x 2560 x 1600 at 60Hz (or 3840x2160 @30hz)
Maximum number of cards per system 16 (64 display channels)
Graphics card memory 512MB total
Maximum current at +3.3V 0.25A (+1.8A when powering four channels of DPextend + DPadapt)
Maximum current at +12V 1.2A
Maximum power dissipation 15 watts
Operating temperature 0 to 35°C / 32 to 98°F
Storage temperature -20 to 70°C / -4 to 158°F
Relative humidity 5% to 90% non-condensing
MTBF TBD - Aim to achieve above 100,000 hrs
Warranty 3 years
SOFTWARE OVERVIEW FOR THE ImageDP4 GRAPHICS CARD:

Drivers

Special multi display driver for use with Windows®7 64 bit and Windows® Server 2008. This driver package supports image rotation of 90, 180 and 270 degrees, allowing landscape displays to be rotated in to portrait orientation or used upside down.

Datapath provides a multi-resolution configuration utility to set the display modes and orientations of the individual screens that are making up the video wall. This feature allows a single controller to be used to create multiple smaller display walls, with several groups of screens running at different resolutions and/ or refresh-rates, making the ImageDP4 ideal for display wall and digital signage applications.
Wall Control

Datapath's Wall Control video wall software is designed to make full use of Datapath's graphics and video capture hardware technology and maximises the use of available hardware acceleration both on video inputs and outputs.

Wall Control allows advanced interactive desktop control, enabling you to simply launch and position video and Microsoft Windows applications to create complex wall layout configurations. Wall Control presents a representational window of the entire display wall showing position and size of windows, including a live sample of all video content.

Datapath Wall Control video wall software enables you to configure your multi screen display, launch video overlays and create a wall layout configuration. With the full version it is possible to save layouts and recall them for future use and also operate Wall Control on a remote PC via a network connection. The ImageDP4 graphics card is supplied with a free version of Wall Control without these advanced features.

Wall Control is available in two versions:

    Wall Control - Free version. (Evaluation version, some limitations to functionality).
    Wall Control-red - Licensed version with a hardware USB key (dongle).
Datapath ImageDP4
