USD $1929.00 Status: In-Stock
19" rack chassis not included
PRODUCT OVERVIEW

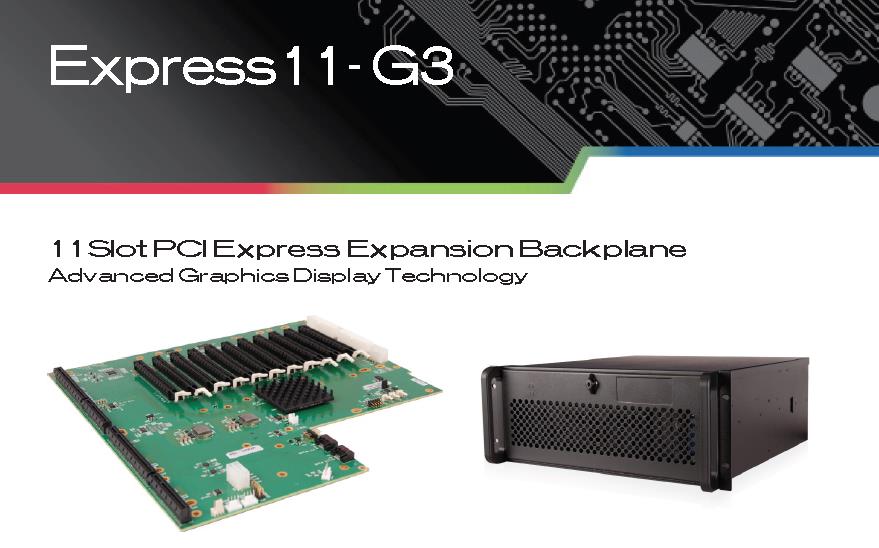

The Datapath Express11-G3 backplane provides 11 x8 lane PCI Express slots, all implemented as x16 physical connectors. They can be used with a standard PICMG 1.3 SBC as a stand alone system or in combination with multiple backplanes to provide a PCI Express expansion system for a standard PC.

This backplane uses advanced PCI Express 3.0 switches to create high bandwidth that connects up to 11 PCI express plug in cards into a host system.

The Datapath Express11-G3 uses PCIe Gen.3 switches to provide each slot with up to 8GB/s bi-directional bandwidth.

Using multiple Express11-G3 backplanes configured in a daisy chain expansion mode allows construction of large systems. The Express11-G3 can also be expanded using a star configuration. This configuration enables the construction of very large systems supporting low latency with a high number of slots.
All x8 PCI Express slots in the master chassis (containing the SBC) are populated with a HLink-G3 card. Each HLink-G3 is then connected to an expansion chassis using an ExCable-G3 and SLink-G3 card. This configuration provides a high number of available PCI Express slots supporting low latency.

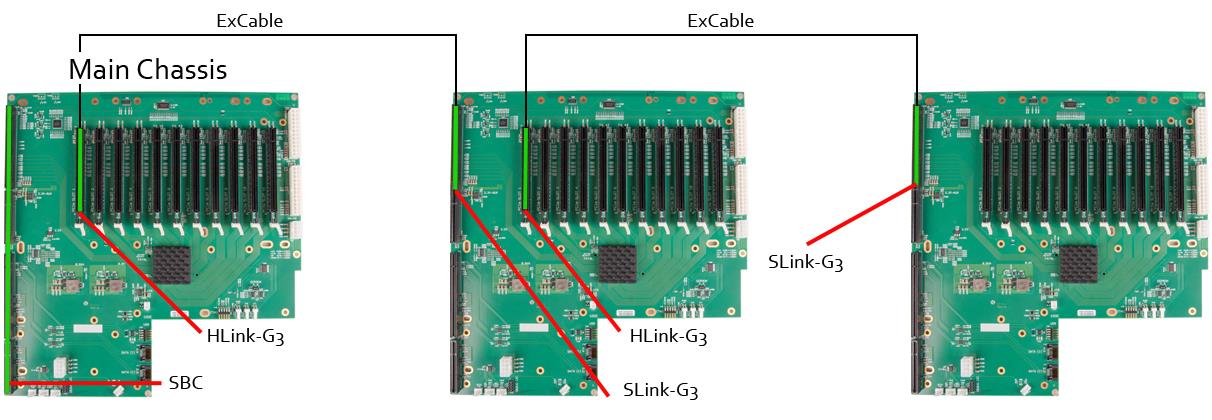

Connecting Multiple Express11-G3 Backplanes - Daisy Chain Configuration
Daisy chain the main chassis to a maximum of five expansion chassis providing up to 51 PCI Express expansion slots


SPECIFICATION OF THE Express11-G3 EXPANSION BACKPLANES:
Max Power (without SBC) 25W
Power requirements

Max current at +3.3V <0.5A

Max current at +12V <0.5A

Max current at +5V <4A

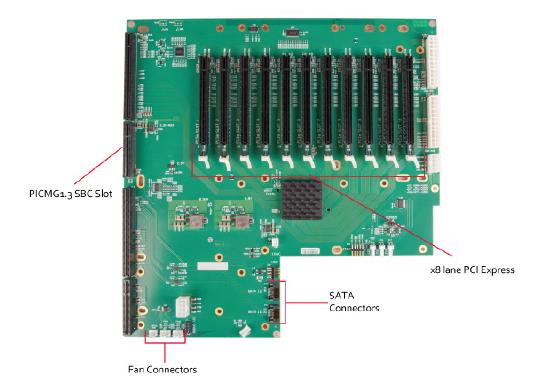

Form factor

PICMG1.3 Host SBC interface (x8 PCIe)

11 x PCI Express (x8) expansion slot
ATX PSU

2 x 24 pin power connectors

2 x 8 pin AUX power connectors
SATA ports 2 x ports via PICMG1.3 interface
USB ports 2 x ports via PICMG1.3 interface, USB 2.0
Operating temperature 0 to 35 deg C/ 32 to 95 deg F
Storage temperature -20  to 70 deg C/ -4 to 158 deg F
Relative humidity 5% to 90% non-condensing

We are continuously developing the technology used within our product ranges delivering outstanding innovative solutions, therefore the specification may change from time to time.
Datapath Express11-G3 Backplane
