FLEXIBLE DISPLAY CONTROLLER WITH HIGH DYNAMIC RANGE

Digital signage solutions that stand out from the crowd need a creative

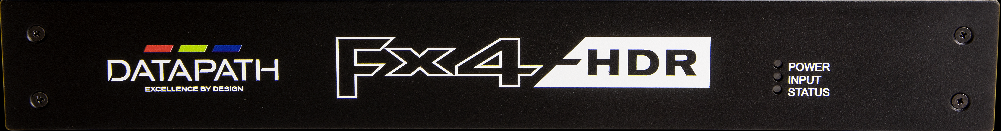

display controller that stands out too. The Datapath Fx4-HDR builds on
the success of its award winning Fx4 and x4 predecessors and brings the
superb HDR 10-bit colour clarity, 4K60 resolution as well as audio support
into the mix.
Supporting a choice of HDMI 2.0 and two additional 1.4 inputs, the Fx4-HDR
is fully HDCP2.2 capable and supports a high bandwidth loop-through for
daisy-chaining multiple devices and creating large video walls.


FEATURES

Infinite creative configurations
Multiple inputs for flexible connectivity:
1 x HDMI 2.0 with HDCP2.2 support
2 x HDMI 1.4 with HDCP1.4 support
Full 10-bit data pipeline with HDR10 (ST2084) and HLG (Hybrid Log
Gamma) support
Four independent outputs up to 1920 x 1200 at 60Hz
High bandwidth loop-through for daisy-chaining multiple units
Audio passthrough, configurable to any single or multiple outputs
Rotate, scale, crop, mirror and bezel correction processing
Content region selection for each output with upscaling and
downscaling support
True stand-alone operation: Fx4-HDR can adapt to changes in inputs by
adjusting all scale factors
Network or USB interfaces allow platform independent control (MAC
OSX 10.6 & later)
Pre-load an image for use when signal is not detected
ADDITIONAL FEATURES
Each output can take its input from any region of the input canvas with all of the required cropping, scaling, rotation and frame-rate conversion handled by the Fx4-HDR hardware.
These regions can overlap to allow any output to replicate another or can be configured to support any creative splice of the source material. This allows the support of many nonrectangular screen
arrangements, as well as any mix of monitor orientations allowing users to create an almost unlimited multi-monitor canvas.
Further, downscaling support on each output allows each selected content region to be output and contained within an arbitrary area of the screen, filling the rest of the screen with a flat colour of user
choice. This can be used to correct content aspect ratio when displaying logos etc on non-standard screen arrangements, or to drive multiple LED controllers with exactly the correct pixels for each section
of a connected LED fixture.
NETWORK CONNECTIVITY
The Datapath Fx4-HDR has dual Ethernet ports to allow users to add the device to their networks. Only one device in the chain requires connection to the physical LAN as Ethernet loop-through is supported
on the second port, meaning multiple devices can be connected.
WALL DESIGNER
Datapath’s hugely popular multi-screen design tool, Wall Designer has also been updated to incorporate Fx4-HDR. Wall Designer allows users to add displays from the ever-expanding database of monitors,
visualise their content by adding inputs and adjusting display regions and finally instantly program all devices either via USB or the network ports.
SPECIFICATION

DIMENSIONS Size 316mm (l) x 172mm (w) x 42mm (h) Weight 1.86kg
OPERATING TEMPERATURE 0 oC to 35 oC / 32 oF to 96 oF
POWER REQUIREMENTS IEC switched and fused mains connector 100-240V, 50/60Hz / 35W
VIDEO INPUT CONNECTIONS 1 x HDMI 2.0 (2160p60 or equivalent up to 616MP/s) 2 x HDMI 1.4 (2160p60 (4:2:0), 2160p30 or equivalent up to 297MP/s)
VIDEO OUTPUT CONNECTIONS 4 x HDMI 1.4 (1080p60, 1200p60 or equivalent up to 165MP/s)* 1 x HDMI 2.0 loop-through port, locked to selected video input resolution
*Outputs within 165MP/s but taller/wider than 2048 require testing
INPUT SURFACE 8K x 8K maximum
GENLOCK INPUT Analog black-burst on dedicated BNC connector, or any video input (selectable)
CONTROL INTERFACES Dual 100Base-T Ethernet ports with inbuilt managed switch. USB 2.0 Type B connector (full speed operation)
FIRMWARE SUPPORT Updates supported via USB and Ethernet connection
STORAGE -20 °C to 70 °C / -4 oF to 158 oF
RELATIVE HUMIDITY 5%-90% non-condensing
WARRANTY 3 years
